HERMA 500 – For all labeling applications

Reliable, compact, highly modular and future-proof

The HERMA 500 is the right labeling applicator for all industries, applications and mounting positions. Thanks to its modular structure and the use of high quality, robust materials, it can be used for any labeling task. We are able to guarantee maximum quality and extremely short delivery times thanks to our manufacturing facilities based in Germany and the expertise of 250 specialists, who focus solely on labeling solutions.



What you can expect on this page

Powerful

HERMA 500
Faster and more convenient

Touchscreen with intuitive menu guidance.

Time saving set-up via intelligent features and groundbreaking technologies.

Quick set-up

Short make-ready time thanks to innovative technologies such as assisted backing paper feed & automatic label length detection.

25 % Faster labeling speeds

Improved performance: 25 percentfaster labeling speeds thanks to newly developed components.

200 m/min Highspeed Labeling

Label products at speeds of 30 m/min to 200 m/min.

Flexible

HERMA 500
Versatile use

Unprecedented versatility and compact design offer fast and easy integration into any production line.

Perfect integration

Can be used to replace HERMA 400 models with just a few modifications.

Suitable for all label sizes

Devices available in the following widths to accommodate virtually any label size:

» 80 mm

» 160 mm

» 240 mm

» 320 mm

Dynamic speed adjustment

Master encoder function now included in the basic version.

High-precision labeling

Modular dispensing systems enable perfectly reproducible application of various label types.

Connected

HERMA 500
Online registration

Fast support, functional upgrades & firmware updates.

Intelligent control

State-of-the-art machine communication.

IIoT-enabled thanks to Ethernet interface and configurable fieldbus connection.

» PROFINET Siemens & Schneider

» EtherNet/IP

» Modbus/TCP

Browser-based operation

Parameterize and operate the device quickly and easily from a web browser.

Intuitive

HERMA 500
Spot-on information

Favored parameter settings directly displayed on home screen, offering quick access to menu, search function and user level settings.

Optimal readability

The touchscreen can be rotated in steps of 90 degrees and includes multi-colored status indicators.

Safe operation

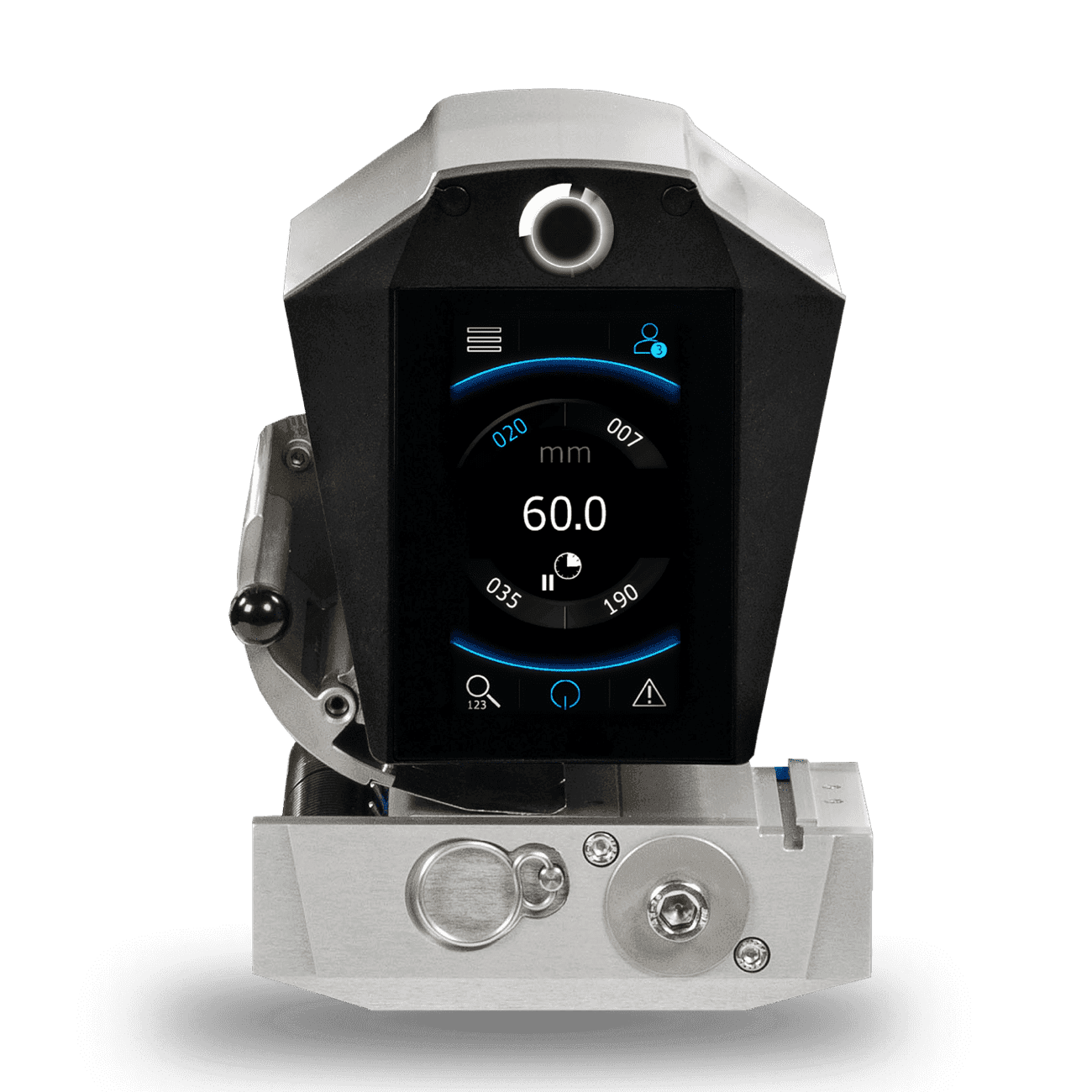

4,3" touchscreen with clear symbols, intuitive menu guidance and indicidual customization.

The HERMA 500 can display messages and text in more than 25 languages. Its user-friendly touchscreen can also display operating instructions, threading diagrams and help topics.

Reliable

HERMA 500
Comprehensive worldwide service

on location at your facility or via HERMA Online Services.

HERMA quality.
Made in Germany.

Unsurpassed reliability with 100% inspection of every label applicator during synchronized serial production.

For decades, HERMA applicators have been known for their extremely long service lives and low maintenance.

Greater safety

Long-term availability of all parts and future-proof interfaces for digital challenges.

Universal

HERMA 500
Industry-specific requirements? No problem!

With its modular design, the HERMA 500 can be adapted to the requirements of any industry.

Suitable for all industries

A master of all classes:

The HERMA 500’s high standards for quality and reliability make it suitable for any industry, including pharmaceuticals, cosmetics, food and beverages and other sectors.

Unmatched versatility

Looking for a versatile system with a one-of-a-kind design? The HERMA 500 can label an endless range of product geometries with the highest precision.

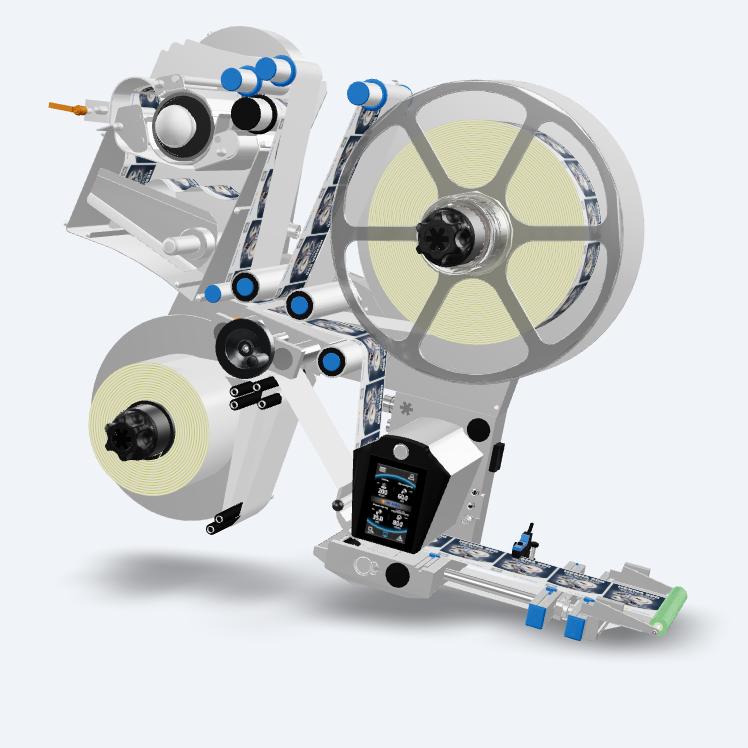

Highspeed

HERMA 500
Best equipped

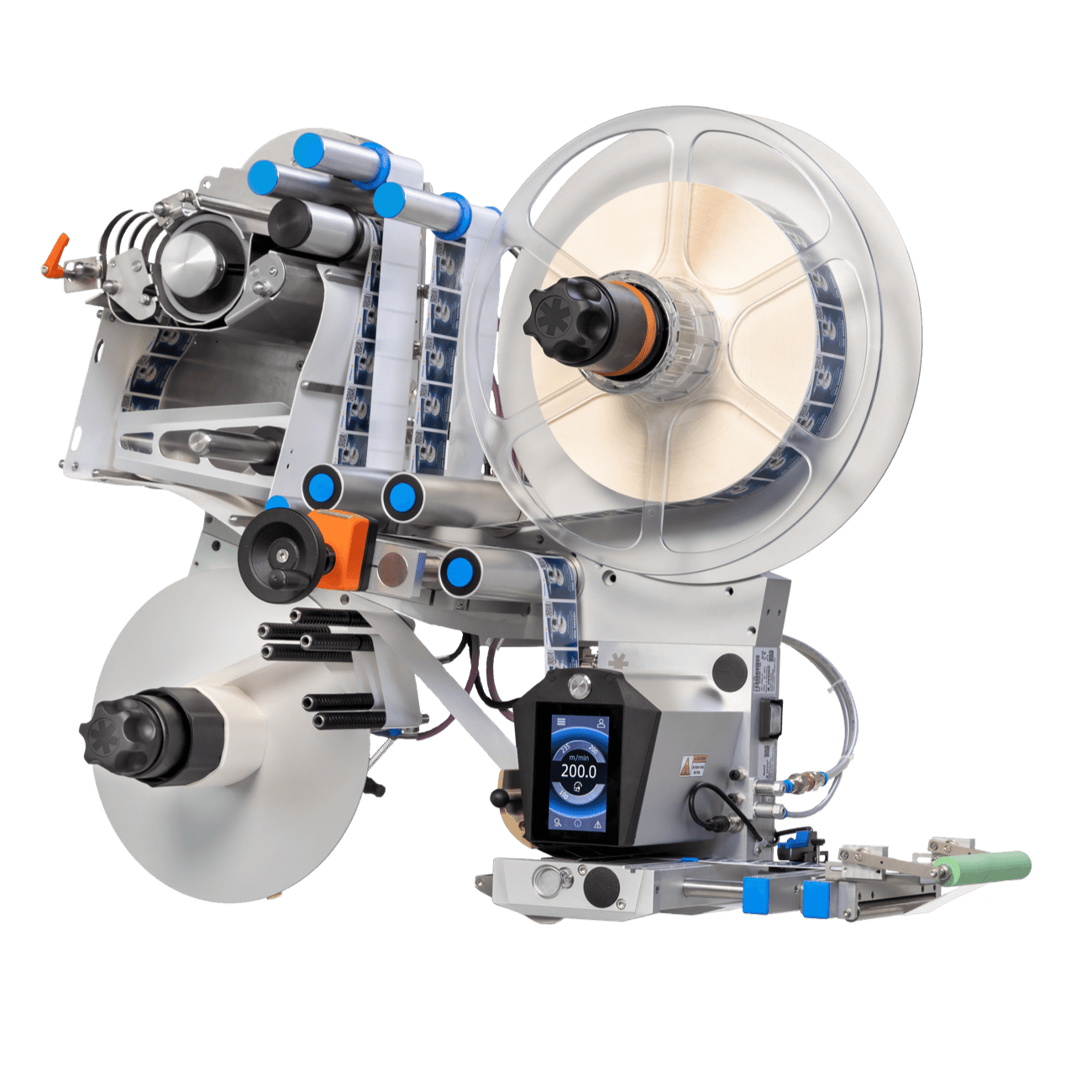

Thanks to motorized winders and a loop unit, the HERMA 500 is running at 200 meters or 2,000 labels a minute, synchronized with the product speed.

Non-stop high speed

24 hours a day and seven days a week if necessary!

Flexibility in the smallest of spaces

Customers can configure the HERMA 500 including the stand – ready for integration – entirely according to their needs and wishes. Function and speed upgrades are also possible afterwards via code activation.

Service features

HERMA 500
QR code for even better service

Rapid, qualified and efficient assistance with troubleshooting and commissioning using the HERMA 500 QR code.

Firmware update for even better functionality

A firmware update can improve the functions and features, even on older devices.

Activation of functions with activation code

Functions can be enabled without retrofitting. The codes can be purchased in myHERMA at any time and can be used straight away.

Device backup and restore

The device backup function provides protection against loss of data. The restore function can be used to return the HERMA 500 to the factory settings.

Loading
A labeling machine with two rollers, a control panel, and a conveyor belt for the automatic labeling of products.
Loading
Technical representation of a labeling machine with rollers, drive mechanisms, and control elements in a modern design.

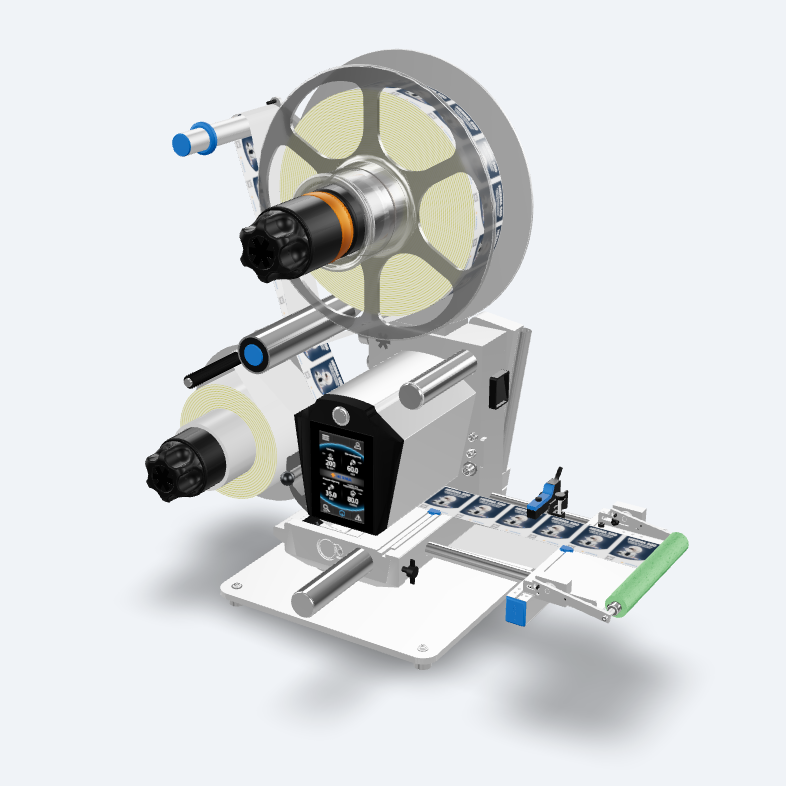

Discover the HERMA 500 as a 3D model

Immerse yourself in the world of the HERMA 500 with our interactive 3D model view. Experience both the standard and the high-speed version of our HERMA 500 in a detailed representation.

  • Click on the blue button to load the HERMA 500 model.



  • Click and drag with the mouse to move the HERMA 500 model.



  • Scroll with the mouse to zoom.



Contact us now

Interruption-free labeling thanks to the HERMA 500’s redundancy function

Reliable, non-stop labeling is now available with our newly integrated redundancy function on the HERMA 500. This means that at the end of a roll or in the event of another fault, two HERMA 500 applicators connected in series can take turns, since they communicate directly with one another. An additional PLC is not required. This ensures reliable processes, preventing both products with no labels and products with duplicate labels.



Easy to set up and functional at all times

  • Easy to activate the function with a code
  • Buy directly in myHERMA and activate with HERMA 500
A book left open with a highlighted exclamation mark, indicating important information or notes.

No duplicate labels or products with missing labels

  • Two HERMA 500 labeling machines communicating with one another
  • At the end of the roll or in the event of another fault, the second labeling machine takes over
Two stylized figures with round heads and simple bodies standing side by side.

Efficient labeling process guaranteed

  • No downtime thanks to perfect coordination of the two applicators
  • Non-stop labeling means considerable time savings for the user
A blue, spiral arrow moving to the right symbolizes progress or the pursuit of a goal.

No additional PLC required

  • No subsequent hardware connection
  • Suitable for all types of labeling
Blue gear symbol with an inner circle, commonly used for settings or technical options.

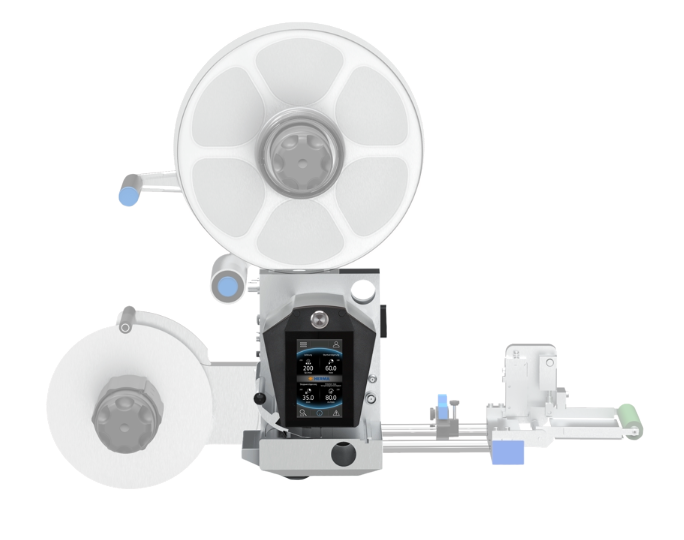

Design your HERMA 500 labeler modular & individual

Discover the versatility of the HERMA 500 labeler! Use our planning tool to customize your labeling solution. The HERMA 500 base unit forms the basis, which can be adapted to your requirements using flexible components - for an efficient and productive solution.
Convince yourself of the numerous possibilities that the HERMA 500 offers for your processes.

Design your labeler now!

Medical device with two large wheels, a control panel in the center, and various connections for use in patient care.

No compromises, absolute performance

Don’t choose between speed, precision, usability and reliability- With the HERMA 500 and its modular components, you get everything in one - and your individual labeling solution!



That's what the users say

A man in safety gear and a hairnet stands in a production facility while employees fill bottles. Machines are running in the background.

"Reliable - Because it's HERMA!"

Mr. Şahin Çakar - Repair and Maintenance Officer

A CHEMICAL-COSMETIC COMPANY FROM ISTANBUL, TURKEY

Man giving a thumbs up in a production facility, next to a machine for labeling products on a conveyor belt.

"A fantastic machine!!!"

Roeland Raaijmakers - Production Manager

SPECIAL FRUIT NV OF THE FOOD INDUSTRY, MEER IN BELGIUM

A man stands next to a machine in a workshop, smiling and wearing a black T-shirt with a logo.

"We’re thrilled with the HERMA 500!"

Eberhard Luz - Team Leader Employment and Vocation Promotion

GWW GEMEINNÜTZIGE WERKSTÄTTEN UND WOHNSTÄTTEN GMBH, CALW IN GERMANY

Technical Specifications

Label Specifications

Label width:

80 / 160 / 240 / 320 mm • 3.1“ / 6.3“ / 9.4“ / 12.6“

Roll diameter:

300 / 400 / 500 / 600 mm • 11.8“ / 15.7“ / 19.7“ / 23.6“



HERMA 500 Technical Specifications

Construction:

Left-hand unit • right-hand unit

Labeling speed:

0 – 30 / 50 / 80 / 150 / 200 m/min 0 – 98 / 164 / 262 / 492 / 656 ft/min

Interfaces:

I/O-Interface • Industrial Ethernet • Web Interface • OPC UA • CAN-Bus • master encoder • start signal • label scanning • printer • transfer system • Power Out

Labeling functions:

Master encoder operation • machine control CAN-Bus

Certification:

UL and CSA

Label scanning - Sensor type:

Forked photoelectric sensor • FS03 for scanning of last label • ultrasonic sensor

Operation:

Operation via pictograms on the 4.3” color touchscreen • quick access to 4 parameters, menu, user administration, search, messages, operation on / off • format management • language selection • can be operated with gloves • button for manual label feed • main switch for complete mains isolation

Displays:

Display rotatable in 90° steps • display of the configurable main parameter • status display: ready, alert, malfunction in various colors • display threading scheme • display operating manual

Service functions:

Remote access via web browser • functional upgrade via code activation • firmware update via Ethernet TCP/IP

Drive technology:

AC servo motor

Control technology:

Fully integrated in the HERMA 500

Power supply:

100 - 240 V AC, 400 W, 50 - 60 Hz

Operating temperature:

0 - 40° C • 32 - 104° F

Protection class:

IP66
