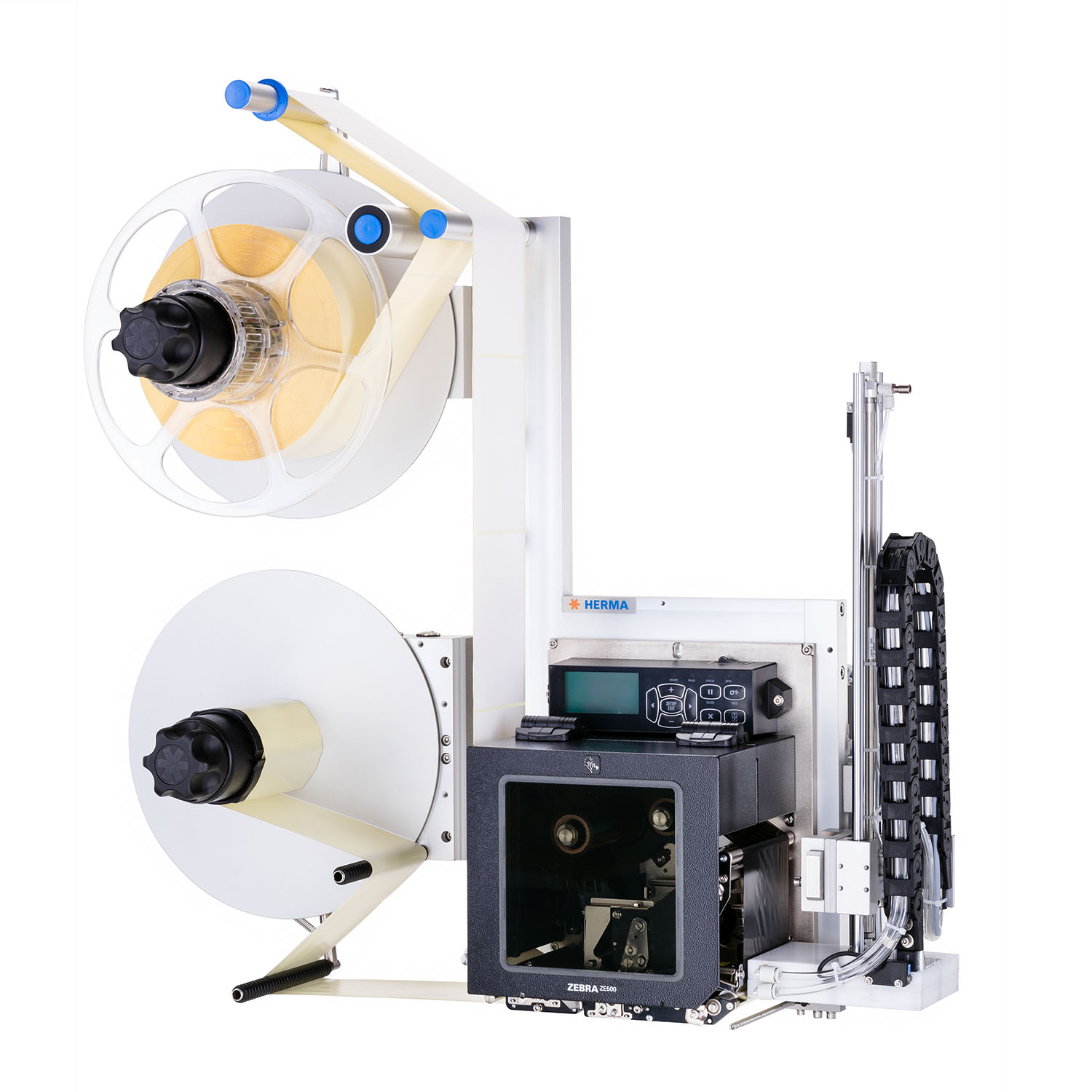

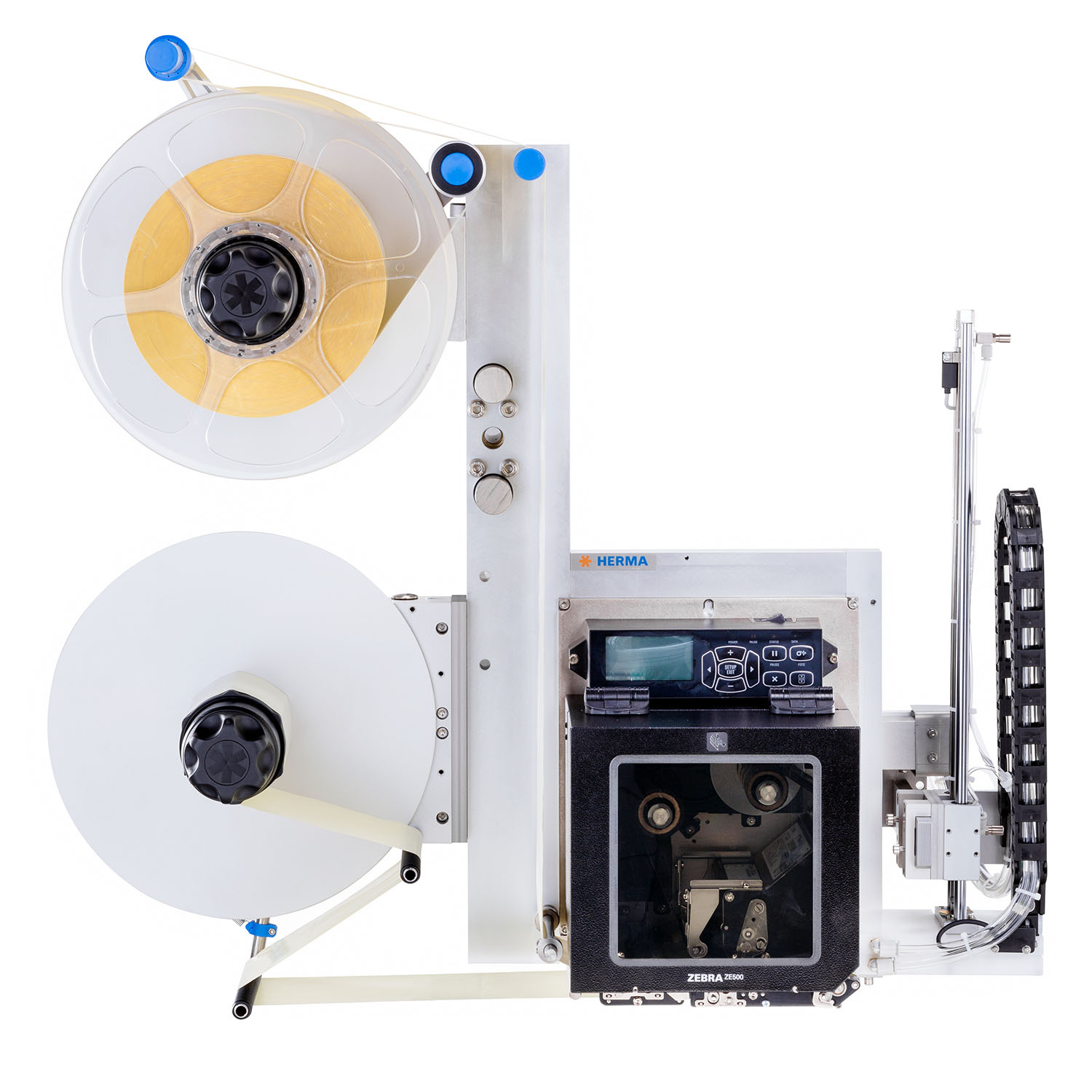

HERMA Print & Apply Systems PA4 / PA6
You want safety when it matters?
The HERMA PA4 / PA6 (Print & Apply) is the ideal device for all users who require durable and hard industrial use and ensures smooth operation and reliable labeling– whether they are technical labels, nameplates, or product labels. This print & apply system offers you versatile possibilities.
- Print resolutions of 200, 300 and 600 dpi ensure maximum readability of the printed image
- Standard components from the HERMA modular system guarantee quick and accurate label dispensing
- The devices can be positioned in any orientation and offer many options for integration into existing production lines

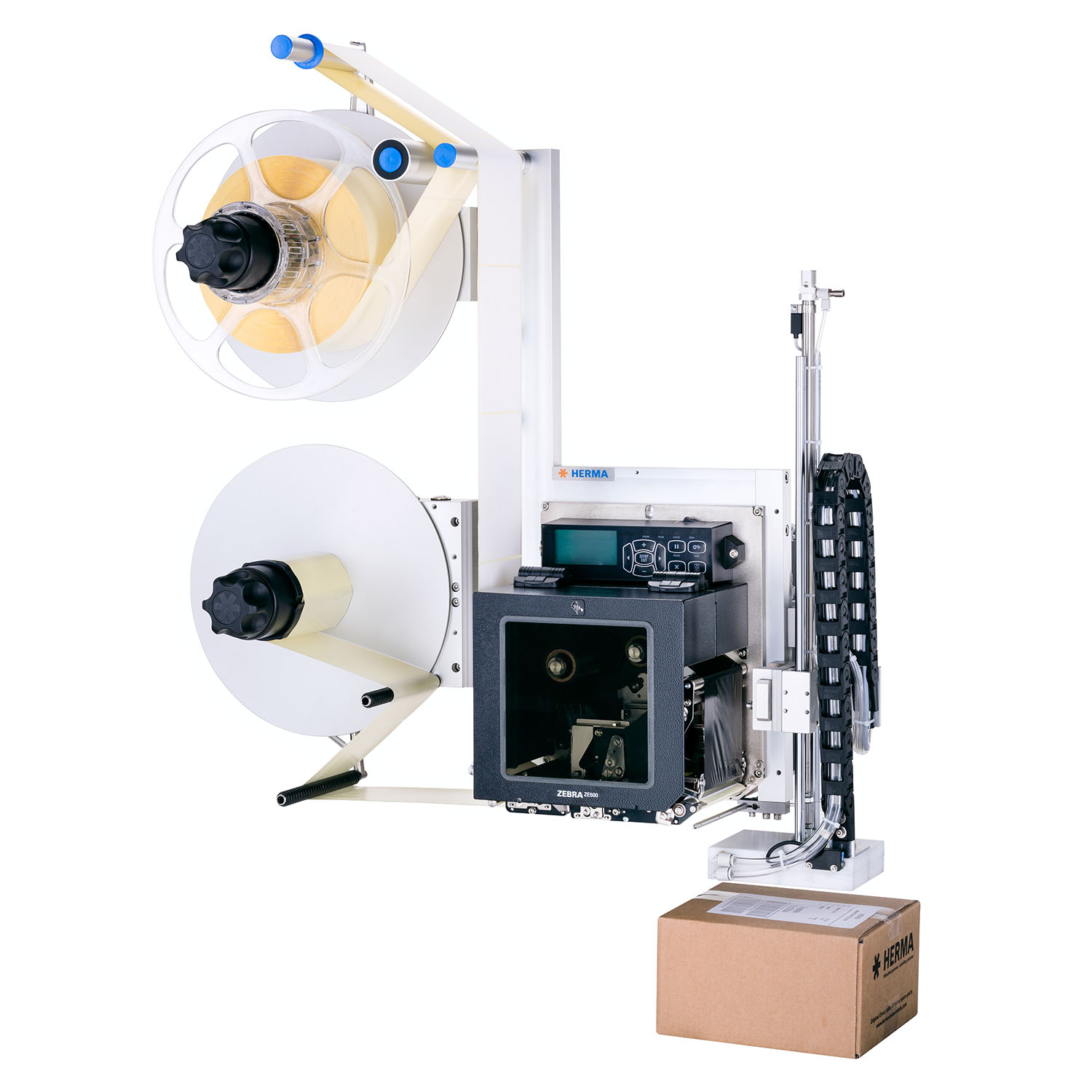

2 in 1 - Print and apply labels
Whether they're technical labels, shipping labels, or product labels—the PA4 / PA6 reliably prints and applies them in a single step.
The following options for label transfer are available:
- Transfer with vacuum stamp - with product contact
- Transfer with vacuum/blower pad - contactless
- Transfer with beak and pressure roller
- Front side transfer is also possible
PA4 and PA6 Printing & Labeling System - As Flexible as Your Requirements
Safe labeling
Label transfer immediately after printing ensures that the label is directly assigned to the respective product. The last label printed is applied.
Modular thinking
Proven standard components from HERMA’s modular system, which are also used in high-performance machines, ensure reliable label application and easy retrofitting.
Versatile application
Labels can be transferred either via vacuum stamp, contactless with a vacuum/blower pad, or with a beak and pressure roller– ideal for precisely applying technical labels. Front side transfer is also possible.
Easy integration
The machines can be positioned in any orientation and offer many integration options for existing production lines, e.g. as left-hand and right-hand units.

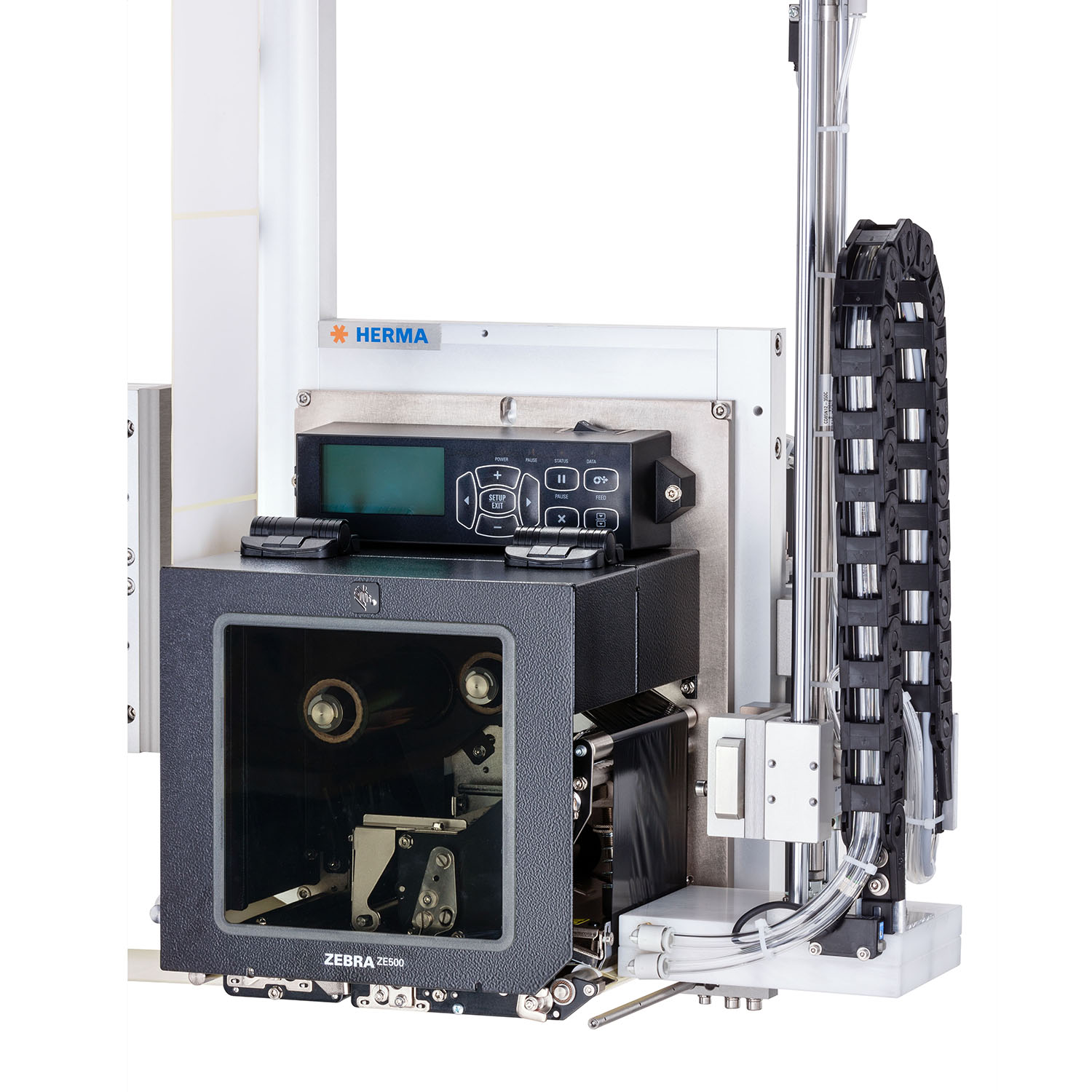

Optimal printing
Industrial printing modules (thermal transfer and direct thermal printing) from all major manufacturers can be integrated, e.g. Zebra, SATO, Carl Valentin, and Datamax.
Fast connection
The print & apply labeling systems are equipped with all essential interfaces for industrial data transmission. Print data are provided via a Windows printer driver or design software such as Easylabel, Codesoft, or Nicelabel.

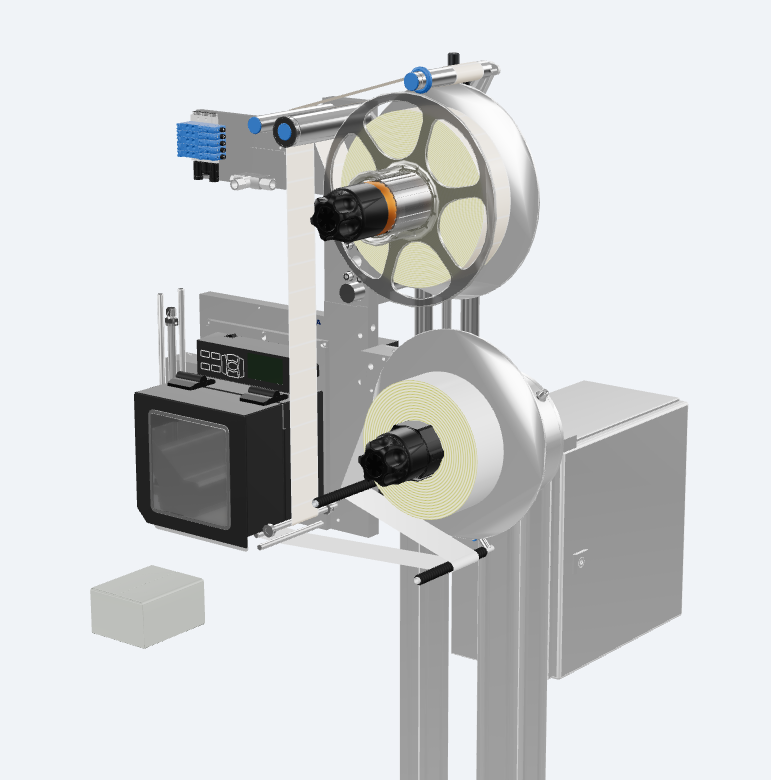

Discover the HERMA Print & Apply Systems PA4 / PA6 as a 3D model
- Click on the blue button to load the HERMA PA4 / PA6 model.
- Click and drag with the mouse to move the HERMA PA4 / PA6 model.
- Scroll with the mouse to zoom.
Specifications
|
Printing method: |
Thermal transfer • Direct thermal printing |
|
Printer: |
Zebra, SATO, Carl Valentin, and Datamax modules |
|
Print resolution: |
200, 300, 600 dpi |
|
Printing speed: |
Up to 300 millimeters / second |
|
Printing dimensions PA4: |
13 - 104 x 13 - 990 mm (W x L) |
|
Printing dimensions PA6: |
76 - 168 x 25 - 990 mm (W x L) |
|
Label passage width PA4: |
Up to 110 mm width |
|
Label passage width PA6: |
Up to 180 mm width |
|
Label material: |
Paper, thermal paper, or plastic (PVC, PP, PE) |
|
Roll diameter: |
300, 400 mm |
|
Core diameter: |
76 mm |
|
Length thermal transfer film: |
Up to 600 m |
|
Components: |
Pedestal, unwind unit, printer, vacuum stamp, rewind unit, signal column, switch cabinet with |
|
integrated control system |
|
|
Options: |
Settings with digital position indicators, product recognition, WIFI |
|
Interfaces: |
RS-232, USB, Ethernet (TCP/IP) |
|
Power supply: |
230 V, 50 Hz, 1 phase |
|
Compressed air supply: |
4 bar |
|
Note: |
If optional features are chosen, the above data may vary. |
