HERMA EasySplicer

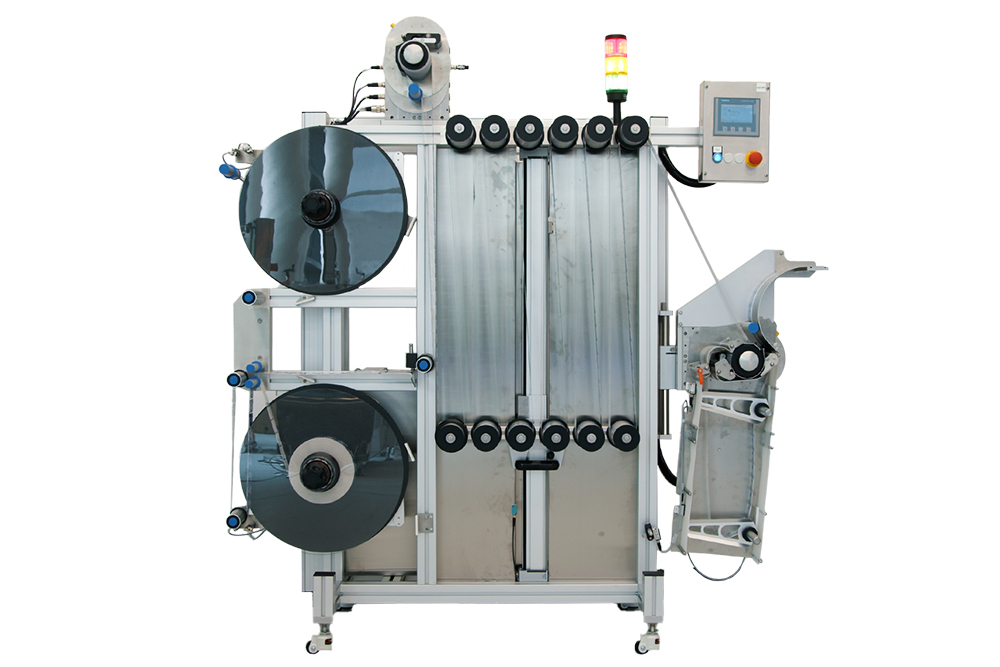

Machine for processing films with two large spools, control unit, and output chute on the right side.

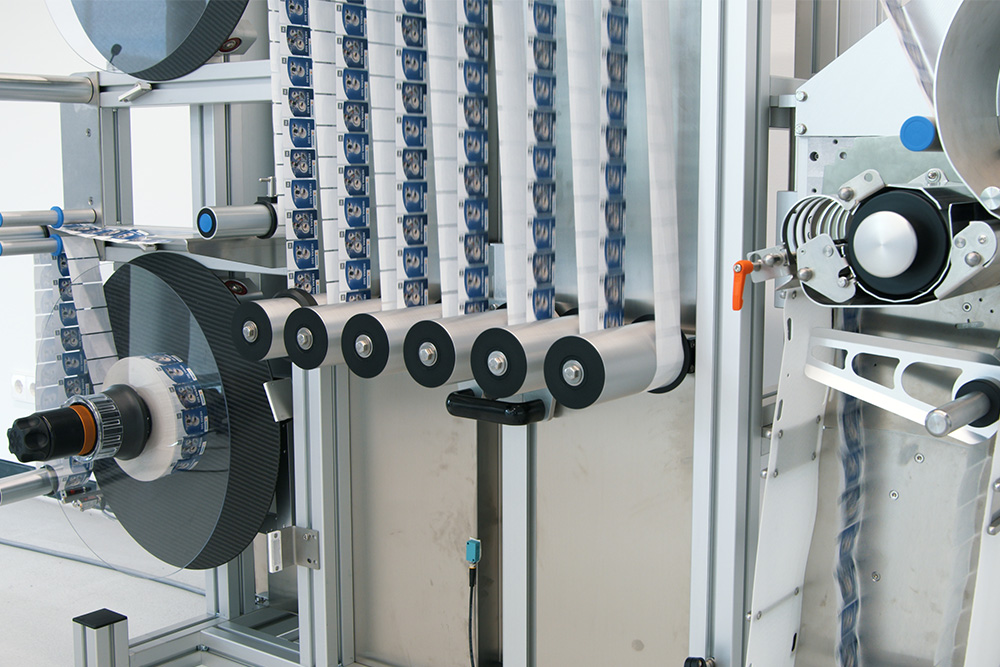

Machine for processing strips, featuring multiple rollers and a mechanical system for arranging the materials.

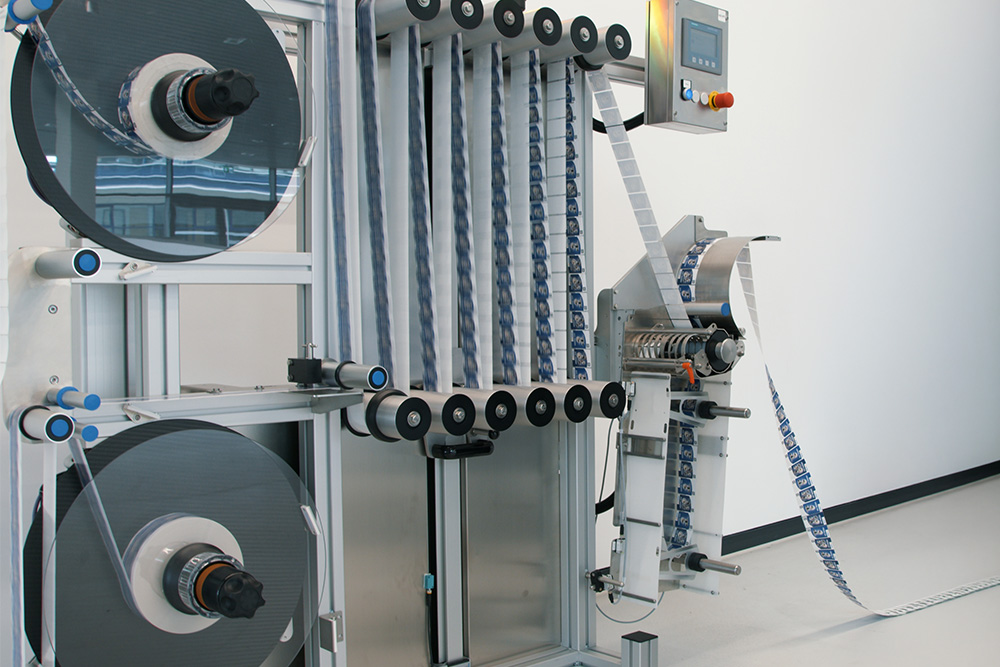

An industrial machine with two large spools that feeds a ribbon through several rollers, equipped with a control panel.

Continuous Production Without Downtime

Two unwinders and an integrated label buffer enable a continuous labeling process without machine downtime caused by roll changes.
Continuous production: The labeling machine continues to run even when the roll is coming to an end, allowing the roll to be changed during operation.
Simple manual web connection: The new label web is conveniently connected to the outgoing web via a splicing table.
Early change notification: Integrated photoelectric sensors detect nearly empty rolls and alert the operator in a timely manner via a signal light.
More time for roll changes: Thanks to the label buffer, the splicing process can be prepared and carried out without stress before the material is completely used up.
Efficient solution for higher system availability: Reduces downtime, simplifies roll changes, and supports a stable production process.

HERMA EasySplicer Video

Note: The additional investment in a HERMA EasyCutter is also worthwhile for an uninterrupted process with seamless changes. This is because the EasyCutter allows you to vacuum up the empty carrier tape and shred it into small pieces. The scraps are automatically collected and can then be recycled. There is no longer any need to manually remove the wound-up empty carrier tape. With a splicer and the HERMA EasyCutter, downtime caused by roll changes can always be reduced to a minimum—and in the vast majority of cases, even avoided entirely.

Technical data

Labels:
Label height	15–80 mm
Label length	30–265 mm
Distance to bottom edge of carrier tape	1 ± 0.3 mm
Label thickness	50 μm – 2 mm
Carrier tape thickness	30–120 μm
Unwinder	400 mm / 500 mm
Label material	Paper or plastic, single or multi-layer
Backing paper material	Paper or plastic, without perforations, with as few adhesive joints as possible
Winding	Inside or outside
Core diameter	76 mm
Weight	250 kg
Dimensions	78 cm x 180 cm x 192 cm (L x W x H)

Technical Design and Environmental Conditions:
Electrical Connection	400 V TN-C-S, 50–60 Hz, 3 phases, approx. 2500 VA / 208 V, delta 4-wire, 60 Hz, 3 phases
Pneumatics	6 bar, 5 m³/h

Additional nonstop solutions for uninterrupted labeling

With its nonstop labeling solutions, HERMA enables a continuous labeling process without production-related interruptions, thereby increasing efficiency, productivity, and process reliability.
EasySplicer and AutoSplicer ensure a continuous supply of label material, while the HERMA 500, with its redundancy function, additionally safeguards the labeling process itself against malfunctions and failures. All three solutions can be flexibly integrated into new or existing production lines.

An Overview of All Nonstop Labeling Solutions
