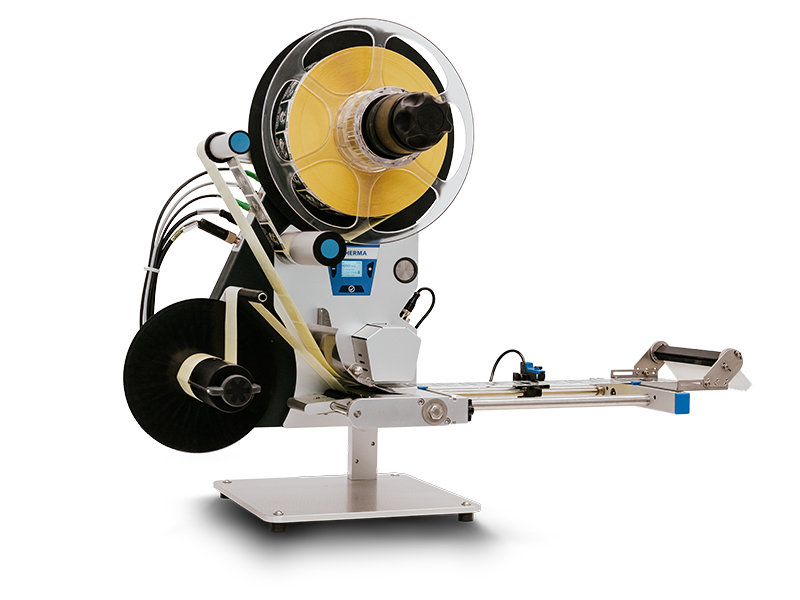

HERMA eco - Perfect applicator for all standards



More power at the lowest price

  • Ideal as an economical entry-level device - just like the previous HERMA basic model
  • Durable, precise and a safe investment
  • For high-performance labeling at up to 30 m/min with a label width of up to 160 mm
  • Individually configurable online, with all functions and a wide range of accessories
  • Easy to operate, can be controlled directly on the device or via a PLC
  • Exceptional range of functions with master encoder for synchronizing product and labelling speed as well as firmware update option
  • Easy upgrade to HERMA 500 if required thanks to identical connector types



Contact us now

A benchmark to get you started

Users appreciated the HERMA basic as an entry-level model among the labelers. The new HERMA eco does not disappoint in this respect either. Amazingly flexible, with high-quality features and easy to use - this is what makes the HERMA eco unique in its class. This is ensured by a compact, robust design, a variety of different dispensing systems and sophisticated functionalities. The HERMA eco also offers the reliable quality of an international technology leader - "made in Germany", with efficient service worldwide. You can access the latest software updates and operating instructions, including tutorials, and order spare or wear parts around the clock via the myHERMA portal. The HERMA eco completely redefines cost-effectiveness.

Control unit with multiple connections and a roll of labels in an industrial setting.

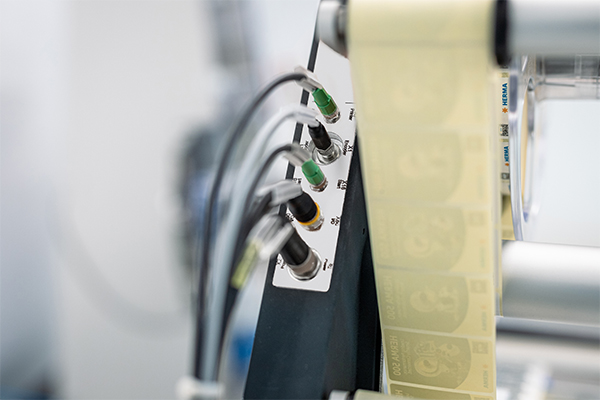

A perfect connection

I/O PINs enable automatic power on/power off, separate start of the labeling process and manual pre-dispensing via the system control - particularly advantageous when setting up the applicator. The end of the tape can also be checked as an option. In addition, the printer and peel-off unit have separately controllable connections. For example, a printer can be used in conjunction with a pneumatic transfer unit. What also makes the HERMA eco a safe investment: the mini-USB connection for firmware updates.

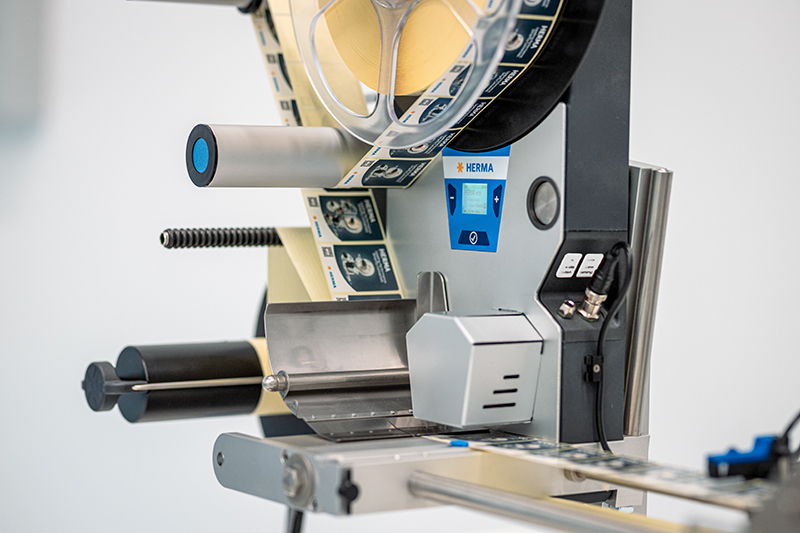

A label printer with a digital control panel displaying the brand 'HERMA.' The label rolls are visible.

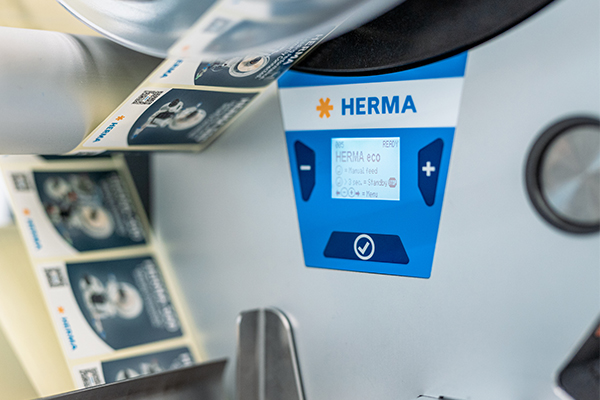

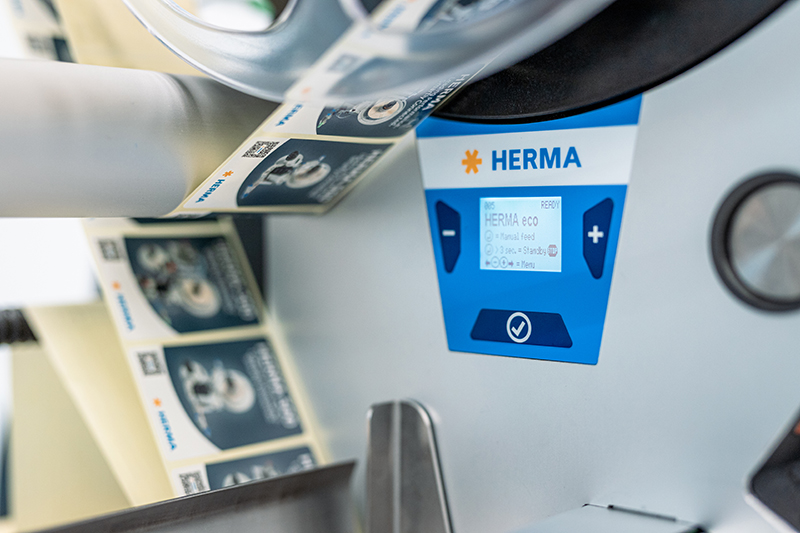

A clever operating concept

Just three large operating buttons, a clear display and a single-level menu structure make operation extremely intuitive and time-saving. This also reduces the time and effort required for familiarization and training. Fine adjustments to achieve optimum labeling results can be made using parameters that are quickly accessible to the operating personnel.

Labeling machine with a digital display and continuous label feed. The machine is designed for labeling products.

For exact results

Its master encoder function, by no means a matter of course in the entry-level segment, allows the HERMA eco to achieve particularly precise labeling. This is because the label feed always remains automatically synchronized with the speed of the conveyor belt. This ensures precision, even at different labeling speeds up to a maximum speed of up to 30 meters per minute. Together with the option of integrating a printer, this means that the HERMA eco is well equipped for even simple pharmaceutical or healthcare tasks.

A machine component with a large spool of yellow material, connected with hoses and a control panel, for processing or packaging.

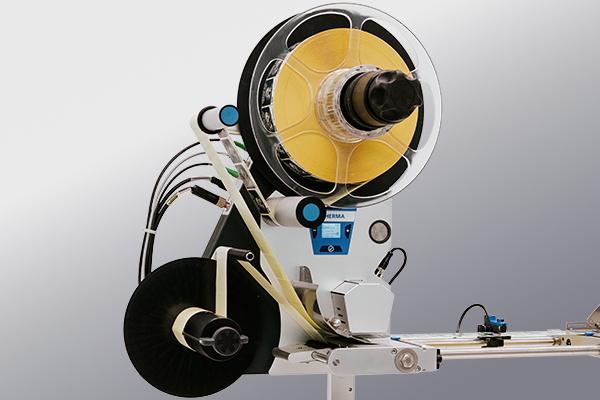

For long running times

The newly designed winder and unwinder also contribute to accuracy. The high-quality plastic results in a low weight. This means that less inert mass has to be moved. This also benefits the labeling quality. The core for holding the label rolls is the same as in the premium model HERMA 500 and is characterized by high stability.

Close-up of a device with two wheels and a needle, used for precise applications in manufacturing or engineering.

For short set-up times

The empty carrier tape is removed from the rewinder quickly and easily by pulling a clamping fork off the rewinding core - a particularly user-friendly and easy-to-handle process.

A printing machine processes labels with technical illustrations and text. The labels are arranged on a roll.

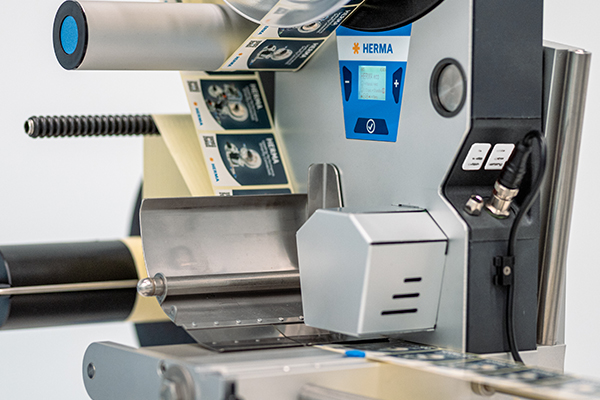

Quickly set up label scanning

The HERMA eco uses either a fork light barrier or FS03 sensor to detect labels on the backing tape. Reliable label scanning is therefore guaranteed for all materials. The easily accessible sensor can be taught in quickly at the touch of a button. This saves time, as there is no need to call up a separate menu and start the labeling process.

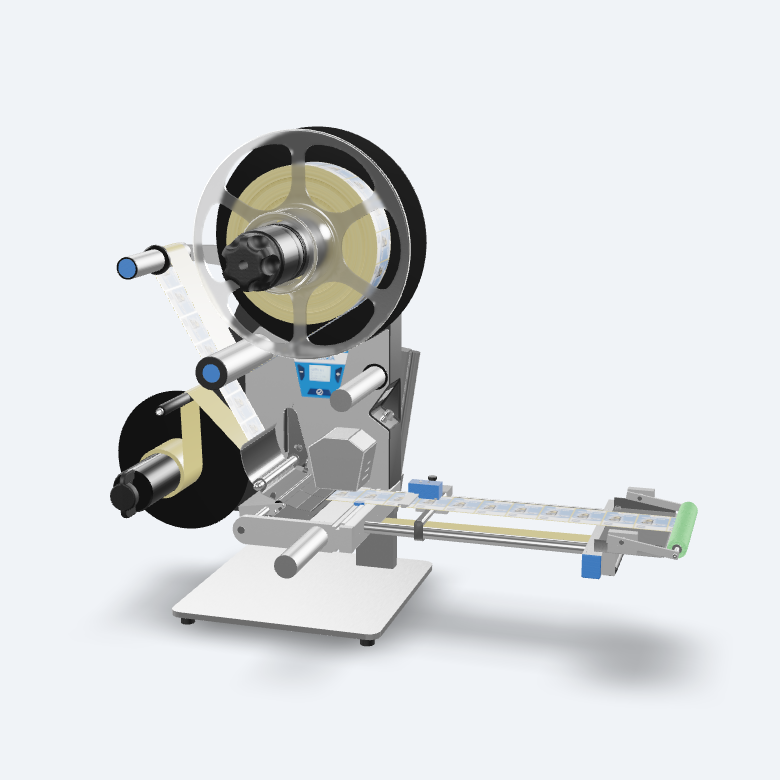

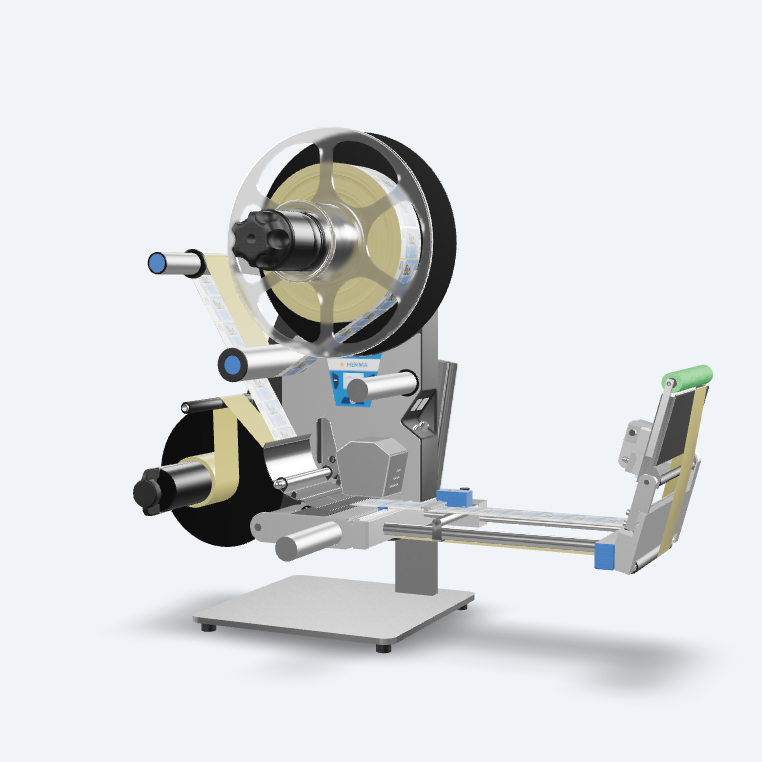

Discover the HERMA eco as a 3D model

Immerse yourself in the world of the HERMA eco with our interactive 3D model view. Experience the HERMA eco in a detailed representation.

  • Click on the blue button to load the HERMA eco model.
  • To rotate the HERMA eco model, hold down the left mouse button and drag.
  • To move the HERMA eco model, hold down the right mouse button and drag.
  • Scroll with the mouse to zoom.



Contact us now

HERMA eco video

Technical specifications

Label specifications

Label width:

max. 160 mm

Label length:

max. 400 mm

Roll diameter:

300 mm

Core diameter:

76 mm (optional 40 / 45 mm)

Technical data

Construction:

Left-hand device • right-hand device

Labeling speed:

30 m/min

Label stop accuracy:

± 0.3 mm

Interfaces:

I/O interface • master encoder • start signal • label scanning • printer • transfer system

Labeling functions:

Manual pick-up • Fixed speed • Master encoder operation for precise labeling

Label sensing Sensor type:

Fork light barrier • FS03 for sensing last label and transparent labels

Clear width carrier system:

0 / 20 / 135 / 300 mm

Peel-off edge support:

0° / 75°

Release edge:

Rigid / pivoting pneumatic

Pressure system:

Roller / spring-loaded roller / brush

Start signal Sensor type:

Reflective light barrier

Operation:

Control panel with display and 3 buttons • Button for manual label feed • Language selection • Can be operated with gloves • Label tape change without tools

Displays:

Display can be rotated 180 degrees • Error messages shown on the display

Service functions:

Function upgrade via code activation • Firmware update via USB

Drive technology:

Stepper motor

Control technology:

Fully integrated in the HERMA eco

Power supply:

100 - 240 V AC, 50 - 60 Hz

Operating temperature:

+10 to +40° C

Storage temperature:

-20 to +80° C

Rel. humidity:

35% to 85%, non-condensing

Max. permissible installation altitude with nominal data:

2,500 m above sea level

Protection class:

IP40

Approval:

CE

Note: The list includes some optional accessories.

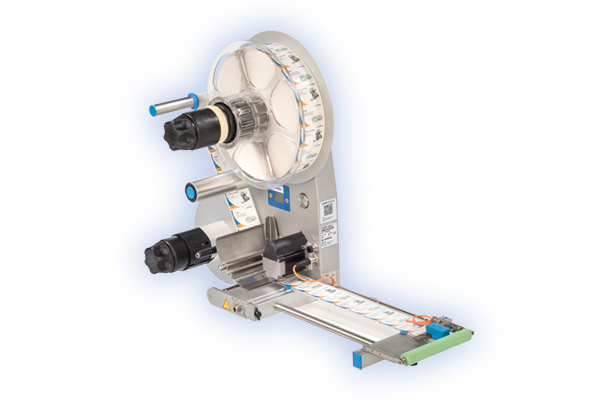

You can still rely on it: Our service for the HERMA basic

Technological progress has a lasting advantage: the better beats the good. That is why the HERMA eco is now replacing the HERMA basic. After many successful years worldwide, it is no longer available since January 2025. But you can be sure that services and spare parts for the HERMA basic will remain available. Because HERMA is a reliable service partner. For the entire life of the product.
