Linerless labeling with the HERMA InNo-Liner labeling machine

Print shipping labels without backing material, avoid thousands of tons of waste material and, at the same time, reduce your carbon footprint – this is all possible thanks to our sustainable and innovative PA4 / PA6 InNo-Liner Print & Apply System



Efficiency, process reliability and speed are just a few of the key features of our PA4 / PA6 InNo-Liner Print & Apply System. The material is printed, cut, activated and applied with the labeling machine and the combined cutting component, micro-atomization component and linear tamp unit. Thanks to the HERMA InNo-Liner and the patented, multi-layer pressure-sensitive adhesive, thousands of tons of backing paper or backing film and the cost of their disposal can be saved every year. Based on end-to-end knowledge and experience, HERMA offers users a complete solution with economic and ecological advantages at every step of the way.



  • Immediate advantages

Thanks to its end-to-end knowledge, HERMA offers a complete solution from the outset: linerless adhesive and label material plus an innovative labeling machine. Users benefit instantly from a holistic and high-performance concept, while label manufacturers are able to offer a unique solution with a whole host of advantages, including a reduction in disposal costs and storage space.

  • Highly effective

Shipping labeling around the world currently results in millions of tons of waste liner material. Completely eliminating this waste product also avoids the need for expensive disposal or recycling processes in this area of application. Good for the environment and good for your business.

  • Knowledge is the key to success

The innovative HERMA InNo-Liner System was created thanks to HERMA's pioneering work and many years of advancement in multi-layer technology for adhesive material production. This revolutionary technology requires the simultaneous application of two layers of adhesive. The outer adhesive layer remains inactive and is only activated during the dispensing process.

Loading
Automatic labeling machine with conveyor belt, equipped with a label dispenser and a control unit.

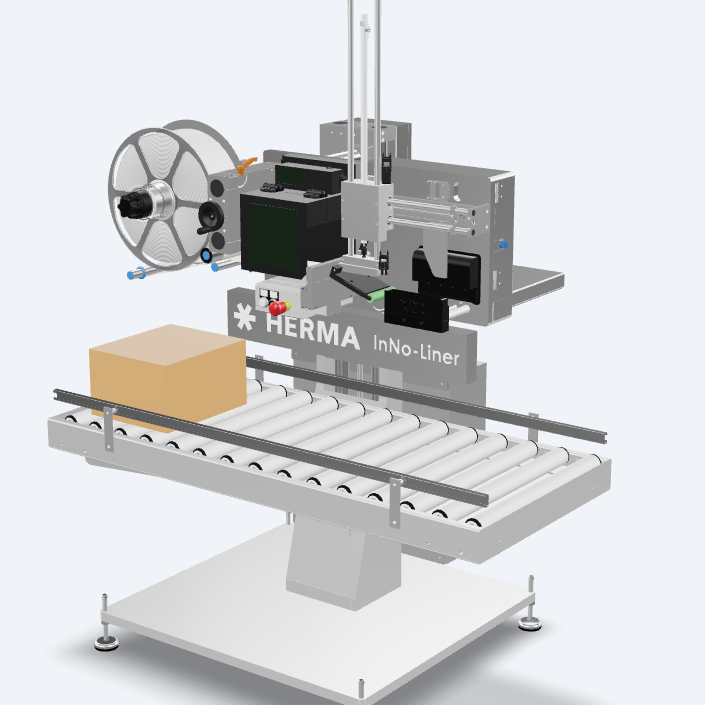

Discover the HERMA InNo-Liner as a 3D model



  • Click on the blue button to load the HERMA InNo-Liner model.



  • Click and drag with the mouse to move the HERMA InNo-Liner model.



  • Scroll with the mouse to zoom.



Contact us now


Cutting unit

After printing, the label is cut to the desired length by the cutting unit. A modified guillotine cutting technique extends the service life to several million cuts and simplifies the blade replacement process.

Micro-atomization unit

At the time of dispensing, a completely water-based activation process ensures that the label adheres immediately, evenly and extremely durably. The water consumption of the system is extremely low. Filling the water tank is quick and easy. The water, partly recovered during the atomization process, is filtered and reused.

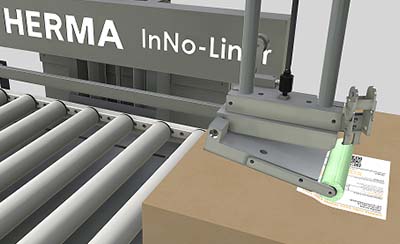

Linear tamp unit

A vacuum suction plate with an application roller and an integrated sensor for automatic cardboard height detection ensure reliable application. The stroke length of the cylinder is 500 mm.

Labeling

The 82S pressure-sensitive adhesive is initially deactivated and non-tacky. When dispensed, the adhesive is activated within a split second and adheres permanently. The material reliably achieves the required durability both in the climate chamber and in practical tests during printing and processing.

A gray symbol with an orange bar that represents a type of mechanical device or tool.
Gray water droplet symbol with an orange stripe.
Air conditioning with orange air currents flowing downward.
A gray package with an orange sticker on top, sealed with a ribbon.

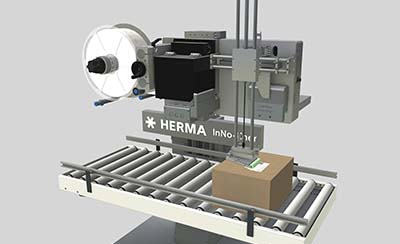

Functionality: Linerless labeling in 4 steps

Using innovative technology, the new InNo-Liner System effortlessly retains the speed of a Print & Apply System and the cycle time usually required for labeling shipping boxes, but instead uses linerless A5 and A6 labels. For the logistics and shipping industries, this is an immediate game changer in terms of cost reductions as well as environmental benefits. Material that is no longer needed does not have to be disposed of or recycled at great expense. The labels can be pre-printed in color using the conventional printing process. The labeling machine can be equipped with an optional thermal transfer printer or thermal direct printer for printing the variable data.


Linerless labeling for shipping boxes


Find out more about HERMA InNo-Liner – our linerless labeling system

The InNo-Liner was the unique culmination of knowledge from the adhesive material, labeling and high-performance labeling machine business areas. Leading companies all over the world rely on HERMA to supply them with high-quality labeling machines.  With our extensive knowledge in the area of pressure-sensitive labeling, we ensure that the labeling and identification of products and packaging runs smoothly in all aspects. Contact us – we will be happy to advise you and work with you to develop the optimal solution for your specific application.

Would you like to find out more about the patented linerless adhesive and label material and the integrated HERMA InNo-Liner System? Further information can be found here:



Linerless labeling success stories

Hear about some of the challenges our customers faced and how our sustainable HERMA InNo-Liner System successfully helped to overcome them.


Two workers in blue overalls and hairnets are holding boxes in a production environment and checking their contents.

Linerless side labeling for food items
Learn more

Customer:

Rapunzel

Application / sector:

Outer packaging in the logistics chain / food industry

Labeling solution:

PA4 / PA6 InNo-Liner labeling system

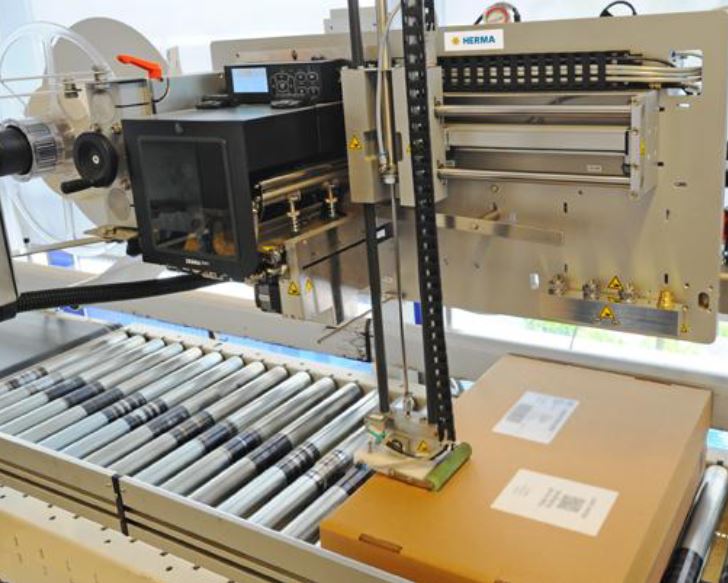

Linerless HERMA labeling machine for shipping and logistics labels
Learn more

Customer:

Hanes Australasia

Application / sector:

Shipping and logistic labels / garment industry

Labeling solution:

PA4 / PA6 InNo-Liner labeling system


Technical data for the PA4 / PA6 InNo-Liner Print & Apply System

Applicator type:

Topside labeling while stationary or in product passage mode

Product properties:

Rectangular, dimensionally stable, absorbent surface

Printing method:

Thermal transfer • Direct thermal

Printer:

Modules from the Zebra® ZE500 series

Print resolution:

200 / 300 dpi

Label dimensions (label width x label length):

60 – 148 x 80 –210 mm (W x L)

Performance:

Up to 20 products/minute

Reel diameter:

300 / 400 / 500 mm

Core diameter:

76 mm

Components:

Pedestal, mounting fixture, unwinder, printer, cutting unit, linear application unit, vacuum suction plate with application roller, water system, activation unit, control panel

Options:

Automatic product height detection, mobile version, signal column

Water consumption:

1 l/1,000 m² demineralized water

Interfaces:

RS-232, USB, Ethernet (TCP/IP)

Power supply:

230 V, 50 Hz, 1 phase

Compressed air connection:

6 bar
